Architecture

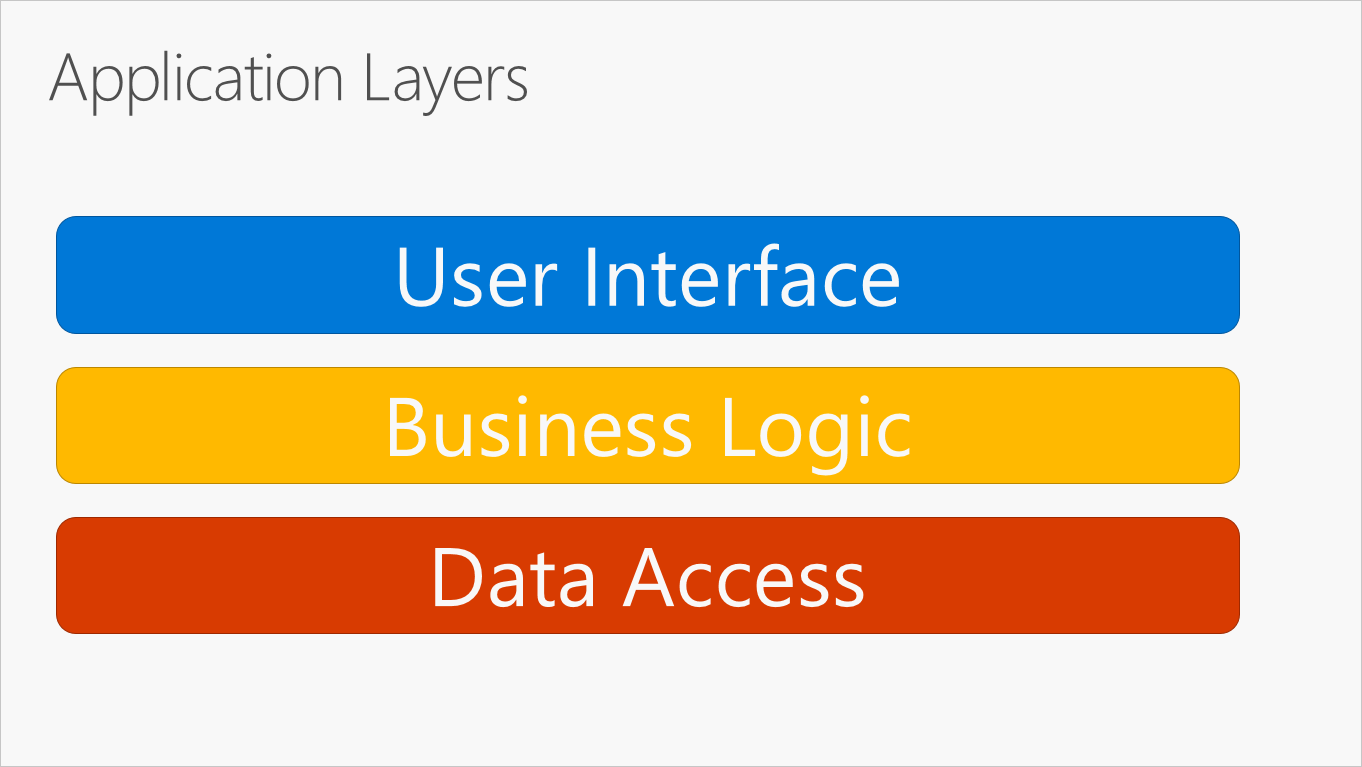

传统三层架构 - Traditional "N-Layer" architecture applications

《企业应用架构模式》中提到三个基本层次的架构：表现层、业务层和数据层：

表现层UI，负责对外展示和交互，包括处理请求、展示数据；
业务层BL，负责业务逻辑；
数据层DL，负责与数据库、消息系统、事务管理器等通信。

数据层位于最底层；业务层在数据层之上，依赖数据层；而表现层在其他两层之上。

调用可以向下，import 必须向上；下层实现通过接口注入，上层代码永远看不到实现类。

markdown

com.myapp
├─ ui ← 表现层
│ ├─ controller
│ └─ dto
├─ domain ← 业务层
│ ├─ model
│ └─ repository ← 接口包
└─ infrastructure ← 数据层
├─ persistence ← RepositoryImpl、JPA Entity
└─ messaging ← 消息队列适配器

ui 包只能 import com.myapp.domain.*;，禁止出现 com.myapp.infrastructure.*。
domain 包不能出现 import jakarta.persistence.*、import org.springframework.jdbc.* 等持久化/消息中间件 API。
infrastructure 包允许 import com.myapp.domain.repository.OrderRepository; 去实现接口，但禁止 import com.myapp.domain.service.*、import com.myapp.ui.*。

Clean Architecture

Base on DDD.

Hands-on Clean Architecture Template, 可学习参考，可落地的整洁架构模板。旨在成为项目的代码库模板选项之一。

Clean Architecture 核心原则

Base on DDD.

Hands-on Clean Architecture Template, 可学习参考，可落地的整洁架构模板。旨在成为项目的代码库模板选项之一。

domain - application - adaptor/infra/presentation

application: 校验（业务校验），转换，编排，再转换

entity/model可以有多个，但聚合根只有一个

side effect, application 处理，但处理时，传给side effect的东西，最大只能是domain entity，额外的东西，即使application拿过，也不会传。

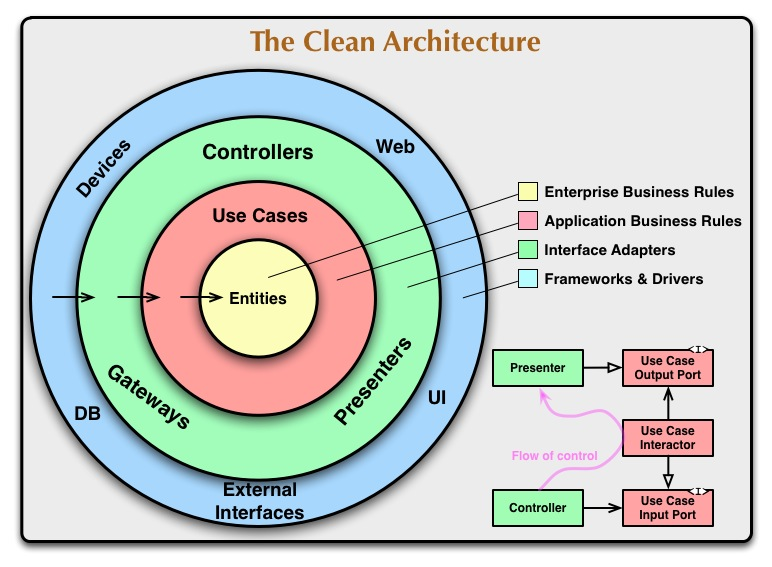

Clean Architecture 由 Uncle Bob 提出，遵循以下核心原则：

依赖倒置原则：内层不依赖外层，外层依赖内层的抽象
单一职责原则：每一层都有明确的职责边界
开闭原则：对扩展开放，对修改关闭
框架无关性：业务逻辑不依赖任何框架

架构层次详解

1. Entities (Domain Layer) - 领域层

职责：包含业务实体、值对象、领域服务和领域事件

纯业务逻辑，零框架依赖
定义业务规则和约束
包含聚合根、实体和值对象

java

// Domain Entity - Order (聚合根)
public class Order {
    private OrderId id;
    private CustomerId customerId;
    private List<OrderItem> items;
    private OrderStatus status;
    private Money totalAmount;

    public Order(OrderId id, CustomerId customerId) {
        this.id = id;
        this.customerId = customerId;
        this.items = new ArrayList<>();
        this.status = OrderStatus.CREATED;
        this.totalAmount = Money.ZERO;
    }

    public void addItem(ProductId productId, int quantity, Money unitPrice) {
        if (status != OrderStatus.CREATED) {
            throw new IllegalStateException("Cannot modify confirmed order");
        }

        OrderItem item = new OrderItem(productId, quantity, unitPrice);
        items.add(item);
        recalculateTotal();
    }

    public void confirm() {
        if (items.isEmpty()) {
            throw new IllegalStateException("Cannot confirm empty order");
        }
        this.status = OrderStatus.CONFIRMED;
    }

    private void recalculateTotal() {
        this.totalAmount = items.stream()
            .map(OrderItem::getSubtotal)
            .reduce(Money.ZERO, Money::add);
    }
}

// Value Object - Money
public class Money {
    public static final Money ZERO = new Money(BigDecimal.ZERO);
    private final BigDecimal amount;
    private final Currency currency;

    public Money(BigDecimal amount, Currency currency) {
        this.amount = amount;
        this.currency = currency;
    }

    public Money add(Money other) {
        if (!this.currency.equals(other.currency)) {
            throw new IllegalArgumentException("Cannot add different currencies");
        }
        return new Money(this.amount.add(other.amount), this.currency);
    }
}

// Domain Service - OrderPricingService
public class OrderPricingService {
    public Money calculateDiscount(Order order, Customer customer) {
        if (customer.isVip()) {
            return order.getTotalAmount().multiply(0.1); // 10% VIP discount
        }
        return Money.ZERO;
    }
}

2. Use Cases (Application Layer) - 应用层

职责：业务流程编排、事务管理、输入验证、输出转换

协调领域对象完成业务用例
处理跨聚合的业务逻辑
管理事务边界
不包含业务规则，只负责流程编排

java

// Use Case - CreateOrderUseCase
public class CreateOrderUseCase {
    private final OrderRepository orderRepository;
    private final CustomerRepository customerRepository;
    private final ProductRepository productRepository;
    private final OrderPricingService pricingService;

    public CreateOrderUseCase(OrderRepository orderRepository,
                            CustomerRepository customerRepository,
                            ProductRepository productRepository,
                            OrderPricingService pricingService) {
        this.orderRepository = orderRepository;
        this.customerRepository = customerRepository;
        this.productRepository = productRepository;
        this.pricingService = pricingService;
    }

    public CreateOrderResponse execute(CreateOrderRequest request) {
        // 1. 输入验证
        validateRequest(request);

        // 2. 获取领域对象
        Customer customer = customerRepository.findById(request.getCustomerId())
            .orElseThrow(() -> new CustomerNotFoundException(request.getCustomerId()));

        // 3. 创建订单
        Order order = new Order(OrderId.generate(), request.getCustomerId());

        // 4. 添加商品
        for (OrderItemRequest itemRequest : request.getItems()) {
            Product product = productRepository.findById(itemRequest.getProductId())
                .orElseThrow(() -> new ProductNotFoundException(itemRequest.getProductId()));

            order.addItem(itemRequest.getProductId(),
                         itemRequest.getQuantity(),
                         product.getPrice());
        }

        // 5. 计算折扣
        Money discount = pricingService.calculateDiscount(order, customer);

        // 6. 保存订单
        orderRepository.save(order);

        // 7. 返回响应
        return new CreateOrderResponse(order.getId(), order.getTotalAmount(), discount);
    }

    private void validateRequest(CreateOrderRequest request) {
        if (request.getCustomerId() == null) {
            throw new ValidationException("Customer ID is required");
        }
        if (request.getItems() == null || request.getItems().isEmpty()) {
            throw new ValidationException("Order must contain at least one item");
        }
    }
}

// DTOs
public class CreateOrderRequest {
    private CustomerId customerId;
    private List<OrderItemRequest> items;
    // getters, setters
}

public class CreateOrderResponse {
    private OrderId orderId;
    private Money totalAmount;
    private Money discount;
    // constructor, getters
}

3. Interface Adapters (Infrastructure Layer) - 基础设施层

职责：实现接口适配器，连接外部系统

数据库访问实现
外部API调用
消息队列适配
缓存实现

java

// Repository Implementation
@Repository
public class JpaOrderRepository implements OrderRepository {
    private final OrderJpaRepository jpaRepository;
    private final OrderMapper mapper;

    public JpaOrderRepository(OrderJpaRepository jpaRepository, OrderMapper mapper) {
        this.jpaRepository = jpaRepository;
        this.mapper = mapper;
    }

    @Override
    public Order save(Order order) {
        OrderEntity entity = mapper.toEntity(order);
        OrderEntity savedEntity = jpaRepository.save(entity);
        return mapper.toDomain(savedEntity);
    }

    @Override
    public Optional<Order> findById(OrderId id) {
        return jpaRepository.findById(id.getValue())
            .map(mapper::toDomain);
    }
}

// JPA Entity
@Entity
@Table(name = "orders")
public class OrderEntity {
    @Id
    private String id;

    @Column(name = "customer_id")
    private String customerId;

    @Enumerated(EnumType.STRING)
    private OrderStatus status;

    @Column(name = "total_amount")
    private BigDecimal totalAmount;

    @Column(name = "currency")
    private String currency;

    @OneToMany(mappedBy = "order", cascade = CascadeType.ALL)
    private List<OrderItemEntity> items;

    // getters, setters
}

// External API Adapter
public class PaymentGatewayAdapter implements PaymentGateway {
    private final RestTemplate restTemplate;
    private final String baseUrl;

    public PaymentGatewayAdapter(RestTemplate restTemplate, @Value("${payment.api.url}") String baseUrl) {
        this.restTemplate = restTemplate;
        this.baseUrl = baseUrl;
    }

    @Override
    public PaymentResult processPayment(PaymentRequest request) {
        try {
            PaymentApiRequest apiRequest = new PaymentApiRequest(
                request.getAmount(),
                request.getCurrency(),
                request.getCardToken()
            );

            ResponseEntity<PaymentApiResponse> response = restTemplate.postForEntity(
                baseUrl + "/payments",
                apiRequest,
                PaymentApiResponse.class
            );

            return new PaymentResult(
                response.getBody().getTransactionId(),
                response.getBody().getStatus()
            );
        } catch (Exception e) {
            throw new PaymentProcessingException("Failed to process payment", e);
        }
    }
}

4. Frameworks & Drivers (Presentation Layer) - 表现层

职责：用户界面、API接口、配置管理

REST API控制器
Web界面
配置文件
依赖注入配置

java

// REST Controller
@RestController
@RequestMapping("/api/orders")
public class OrderController {
    private final CreateOrderUseCase createOrderUseCase;
    private final GetOrderUseCase getOrderUseCase;

    public OrderController(CreateOrderUseCase createOrderUseCase,
                         GetOrderUseCase getOrderUseCase) {
        this.createOrderUseCase = createOrderUseCase;
        this.getOrderUseCase = getOrderUseCase;
    }

    @PostMapping
    public ResponseEntity<CreateOrderResponse> createOrder(@RequestBody CreateOrderRequest request) {
        try {
            CreateOrderResponse response = createOrderUseCase.execute(request);
            return ResponseEntity.ok(response);
        } catch (ValidationException e) {
            return ResponseEntity.badRequest().build();
        } catch (CustomerNotFoundException | ProductNotFoundException e) {
            return ResponseEntity.notFound().build();
        }
    }

    @GetMapping("/{orderId}")
    public ResponseEntity<OrderResponse> getOrder(@PathVariable String orderId) {
        try {
            Order order = getOrderUseCase.execute(new GetOrderRequest(OrderId.of(orderId)));
            return ResponseEntity.ok(OrderResponse.from(order));
        } catch (OrderNotFoundException e) {
            return ResponseEntity.notFound().build();
        }
    }
}

// Configuration
@Configuration
public class ApplicationConfig {

    @Bean
    public CreateOrderUseCase createOrderUseCase(OrderRepository orderRepository,
                                               CustomerRepository customerRepository,
                                               ProductRepository productRepository,
                                               OrderPricingService pricingService) {
        return new CreateOrderUseCase(orderRepository, customerRepository,
                                    productRepository, pricingService);
    }

    @Bean
    public OrderRepository orderRepository(OrderJpaRepository jpaRepository, OrderMapper mapper) {
        return new JpaOrderRepository(jpaRepository, mapper);
    }
}

完整项目结构示例

src/main/java/com/example/order/
├── domain/                          # 领域层
│   ├── model/
│   │   ├── Order.java              # 订单聚合根
│   │   ├── OrderItem.java          # 订单项实体
│   │   ├── OrderId.java            # 订单ID值对象
│   │   └── OrderStatus.java        # 订单状态枚举
│   ├── service/
│   │   └── OrderPricingService.java # 订单定价服务
│   ├── event/
│   │   └── OrderCreatedEvent.java   # 订单创建事件
│   └── repository/
│       └── OrderRepository.java     # 订单仓储接口
├── application/                     # 应用层
│   ├── usecase/
│   │   ├── CreateOrderUseCase.java # 创建订单用例
│   │   └── GetOrderUseCase.java    # 获取订单用例
│   └── dto/
│       ├── CreateOrderRequest.java  # 创建订单请求
│       └── CreateOrderResponse.java # 创建订单响应
├── infrastructure/                  # 基础设施层
│   ├── persistence/
│   │   ├── JpaOrderRepository.java # JPA订单仓储实现
│   │   ├── OrderEntity.java        # JPA订单实体
│   │   └── OrderMapper.java        # 订单映射器
│   ├── external/
│   │   └── PaymentGatewayAdapter.java # 支付网关适配器
│   └── messaging/
│       └── OrderEventPublisher.java # 订单事件发布器
└── presentation/                    # 表现层
    ├── controller/
    │   └── OrderController.java     # 订单REST控制器
    └── config/
        └── ApplicationConfig.java   # 应用配置

实际应用场景

1. 电商订单系统

Domain: 订单、商品、用户等核心业务实体
Application: 下单、支付、发货等业务流程
Infrastructure: 数据库、支付网关、物流系统集成
Presentation: 用户界面、管理后台、移动端API

2. 银行账户系统

Domain: 账户、交易、利率等金融实体
Application: 转账、存款、贷款等业务操作
Infrastructure: 核心银行系统、清算系统、风控系统
Presentation: 网银、手机银行、ATM接口

3. 物流配送系统

Domain: 包裹、路线、车辆等物流实体
Application: 路径规划、配送调度、状态跟踪
Infrastructure: GPS系统、地图服务、短信通知
Presentation: 配送员APP、客户查询系统

最佳实践

依赖注入：使用构造函数注入，避免字段注入
异常处理：定义明确的异常层次，避免泄露技术细节
事务管理：在应用层管理事务边界
测试策略：领域层单元测试，应用层集成测试
文档化：为每个用例编写清晰的文档和示例

domain - application - adaptor/infra/presentation

application: 校验（业务校验），转换，编排，再转换

entity/model可以有多个，但聚合根只有一个

side effect, application 处理，但处理时，传给side effect的东西，最大只能是domain entity，额外的东西，即使application拿过，也不会传。

Domain layer

纯业务，零框架依赖

domain entity/model
value object
Domain Service
Domain Event

CQRS

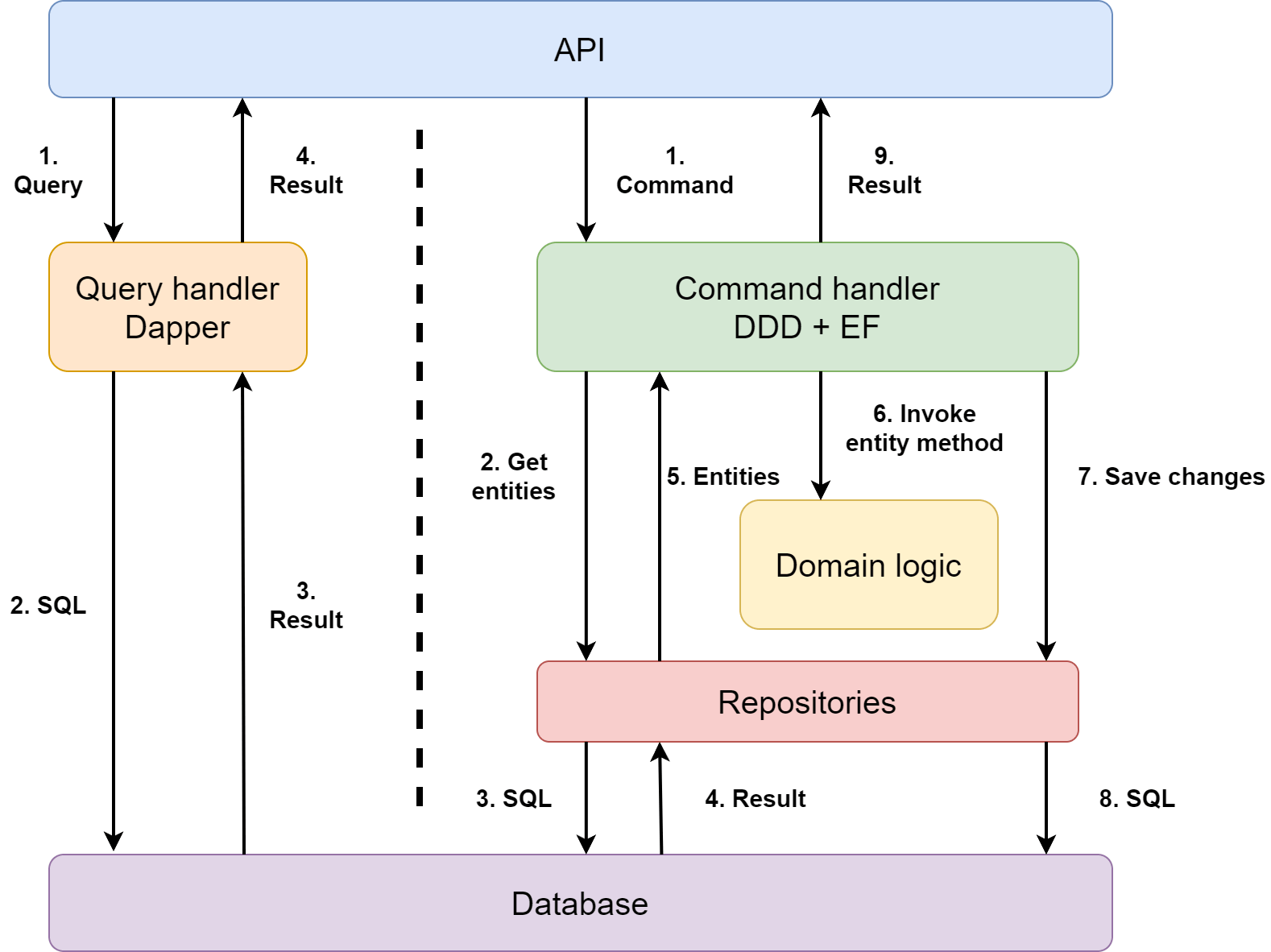

CQRS（Command Query Responsibility Segregation，命令查询职责分离）是一种架构模式，核心思想是：

把"写（命令）"和"读（查询）"拆成两条完全独立的技术路径，各自选用最适合的模型、存储、甚至部署方式。

写端（Command）：只负责更新领域状态，强调一致性、业务规则、事务。
读端（Query）：只负责展示数据，强调性能、灵活性，甚至可以不遵循领域模型，直接走宽表、缓存、物化视图

CQRS Java 实现示例

java

// Command Side
public class CreateOrderCommand {
    private final CustomerId customerId;
    private final List<OrderItemCommand> items;

    public CreateOrderCommand(CustomerId customerId, List<OrderItemCommand> items) {
        this.customerId = customerId;
        this.items = items;
    }
    // getters
}

public class CreateOrderCommandHandler {
    private final OrderRepository orderRepository;

    public void handle(CreateOrderCommand command) {
        Order order = new Order(OrderId.generate(), command.getCustomerId());
        command.getItems().forEach(item ->
            order.addItem(item.getProductId(), item.getQuantity(), item.getUnitPrice())
        );
        orderRepository.save(order);
    }
}

// Query Side
public class OrderQuery {
    private final String customerId;
    private final LocalDate fromDate;
    private final LocalDate toDate;

    // constructor, getters
}

public class OrderQueryHandler {
    private final OrderQueryRepository queryRepository;

    public List<OrderSummary> handle(OrderQuery query) {
        return queryRepository.findOrdersByCustomerAndDateRange(
            query.getCustomerId(),
            query.getFromDate(),
            query.getToDate()
        );
    }
}

// Query Model (可以完全不同于Domain Model)
public class OrderSummary {
    private final String orderId;
    private final String customerName;
    private final BigDecimal totalAmount;
    private final String status;
    private final LocalDateTime createdAt;

    // constructor, getters
}

Architecture ​

传统三层架构 - Traditional "N-Layer" architecture applications ​

Clean Architecture ​

Clean Architecture 核心原则 ​

架构层次详解 ​

1. Entities (Domain Layer) - 领域层 ​

2. Use Cases (Application Layer) - 应用层 ​

3. Interface Adapters (Infrastructure Layer) - 基础设施层 ​

4. Frameworks & Drivers (Presentation Layer) - 表现层 ​

完整项目结构示例 ​

实际应用场景 ​

1. 电商订单系统 ​

2. 银行账户系统 ​

3. 物流配送系统 ​

最佳实践 ​

Domain layer ​

CQRS ​

CQRS Java 实现示例 ​

DDD ​

Architecture

传统三层架构 - Traditional "N-Layer" architecture applications

Clean Architecture

Clean Architecture 核心原则

架构层次详解

1. Entities (Domain Layer) - 领域层

2. Use Cases (Application Layer) - 应用层

3. Interface Adapters (Infrastructure Layer) - 基础设施层

4. Frameworks & Drivers (Presentation Layer) - 表现层

完整项目结构示例

实际应用场景

1. 电商订单系统

2. 银行账户系统

3. 物流配送系统

最佳实践

Domain layer

CQRS

CQRS Java 实现示例

DDD
